| 黄铜锻压三通放气阀 |
| 产品类别：铜阀门系列 |
|
|
|

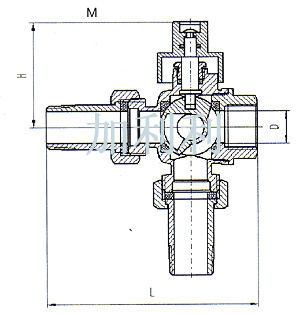

黄铜锻压三通放气阀/Brass forging tee
air relief valve

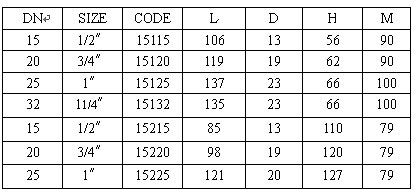

主要尺寸（Dimensions）：
|
|
公称压力：PN≤1.6Mpa 适用介质：水、气 适用温度：T≤150℃
螺纹标准：55º英制G管螺纹
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread
|
|
黄铜锻压三通放气阀/Brass
forging tee air relief valve

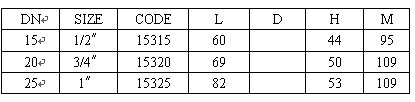

主要尺寸（Dimensions）：
|
|
公称压力：PN≤1.6Mpa 适用介质：水、气 适用温度：T≤150℃
螺纹标准：55º英制G管螺纹
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread
|
|
|
|
