| PZ73H-150Lb美式刀型闸阀 |
| 产品型号：PZ73H-150Lb |
|
|
| 150磅级 |
| 公称通径 |

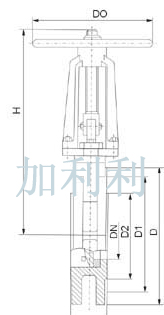

尺寸(mm) |
|
| mm |
in |
L |
D |
D1 |
D2 |
b |
Z-фd |
| 50 |
2 |
43 |
152 |
120.5 |
120.5 |
16 |
4-ф15 |
| 65 |
2 1 /4 |
46 |
178 |
139.5 |
139.5 |
18 |
4-ф15 |
| 80 |
3 |
60 |
190 |
152.5 |
152.5 |
19 |
4-ф15 |
| 100 |
4 |
60 |
229 |
190.5 |
190.5 |
24 |
8-ф19 |
| 125 |
5 |
60 |
254 |
216 |
216 |
24 |
8-ф22 |
| 150 |
6 |
60 |
279 |
241.5 |
241.5 |
26 |
8-ф22 |
| 200 |
8 |
70 |
343 |
298.5 |
298.5 |
29 |
8-ф22 |
| 250 |
10 |
80 |
406 |
362 |
362 |
31 |
12-ф25 |
| 300 |
12 |
90 |
483 |
432 |
432 |
33 |
12-ф25 |
| 350 |
14 |
100 |
533 |
476 |
476 |
35 |
12-ф29 |
| 400 |
16 |
120 |
597 |
540 |
540 |
37 |
16-ф29 |
| 450 |
18 |
120 |
635 |
578 |
578 |
40 |
16-ф32 |
| 500 |
20 |
130 |
698 |
635 |
635 |
43 |
20-ф32 |
| 600 |
24 |
130 |
813 |
749.6 |
749.6 |
48 |
20-ф35 |
| 750 |
30 |
165 |
984 |
914.5 |
914.5 |
76 |
28-ф35 |
|
|
|
|
